180° View Half Dome Safety Mirrors
Half Dome Mirrors
180° Flat Wall Mirror
Use 180° mirrors at three-way intersections
  • Blind Corners
  • Aisles and Corridors
  • Showroom and Store Surveillance
  • Accident Prevention
  • Store Theft Prevention
  • Available in Acrylic
  • Half Dome Mirrors are made for indoor use. We do not recomed half dome mirrors for outside.
  • Use the Steel Backed for applications where porous surfaces are prohibited.
  • Fully assembled with mounting bracket
  • Shatterproof (acrylic)

Inches to Centimeters Conversion Calculator

PRINTABLE PRODUCT CUT SHEET MODELS: RAVxxx

PRINTABLE PRODUCT CUT SHEET MODELS: ALHxxxxxx

PRINTABLE DOME INFORMATION

CLICK HERE FOR HELP WITH BEST SIZE AND STYLE

HALF DOME LENS: Half dome mirrors are made to mount flush against a wall or similar surface to provide viewing around a three-way intersection. They have a 3/4" flange around the edge. The exact flange size may vary depending on the size and style of dome.

Half Dome Backing
1) Lens Only
No Backing - Less rigidity. For inside use only. Easy Flange Mounting.
2) Foam Lined
No Backing - Lens is coated in foam for rigidity. For inside use only.
3) Hard-Board
Masonite Board - For inside or covered & protected outside use. Loop Brackets on the back for screw or hook mounting.
4) Galvanized Steel
Non-porous surface for high interior humidity applications - Mounting the same as is the Hardboard Back.

Half Dome Mounts
1) Flange Mount
Attached with screws into ceiling through holes in the flange.
2) Drop Ceiling Clip Mount
Clips onto drop ceiling tile dividers.
3) Spring Mount
Springs hold mirror onto two hooks screwed into mounting surface behind the mirror.



Click here if you need help deciding which mirror to purchase? - Dome Safety Mirrors



1) Inside Use Only - Flange Mount - NO Black Rubber Rim - Lightweight

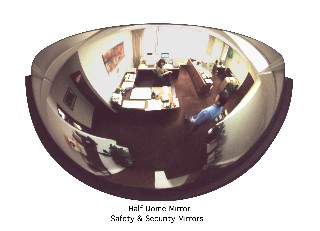

The picture on the right is of the 9"x9" Half Dome Flange Mounted mirror. This mirror is fastened to a wall through the three holes on the flange. Front of Half dome mirror
---- Acrylic 180 degree view half dome Flange Mounted Mirror ----
The flange mounted domes are very light and easy to install. The lens is shatterproof acrylic with excellent reflective properties. This mirror is a good choice where there is a flat surface where the mirror can easily be attached with screws. The mirror can be attached to a wall or to a ceiling. ( MADE IN THE USA)

Item Code Size Price Each
  • 1
  • 5
  • 10
  • 15
 Add to Cart
RP-AV12HL 12
  • $31.00
  • $29.00
  • $27.90
  • $26.00
RP-AV18HL 18
  • $49.00
  • $47.00
  • $44.10
  • $42.00
RP-AV26HL 26
  • $76.00
  • $72.00
  • $68.40
  • $65.00
RP-AV32HL 32
  • $106.00
  • $101.00
  • $95.40
  • $90.00
RP-AV36HL 36
  • $132.00
  • $125.00
  • $118.80
  • $112.00
2) Inside Use Only - POLYCARBONATE - Light weight - High Impact Resistant Polycarbonate - Flange Mount
---- Flange Mounted Unbreakable Polycarbonate 180 degree view Half Dome ----
The flange mounted domes are very light and easy to install. The lens is unbreakable polycarbonate with excellent reflective properties. This mirror is a good choice where there is a flat surface where the mirror can easily be attached with screws. The mirror can be attached to a wall or to a ceiling. ( Distributed in the USA)

Item Code Size Price Each
  • 1
  • 5
  • 10
  • 15
 Add to Cart
SA-LX18-180 18
  • $51.00
  • $48.45
  • $45.90
  • $40.80
SA-LX26-180 26
  • $68.00
  • $64.60
  • $61.20
  • $54.40
SA-LX32-180 32
  • $85.00
  • $80.75
  • $76.50
  • $68.00
SA-LX36-180 36
  • $131.50
  • $124.93
  • $118.35
  • $105.20
3) Inside Use Only - Drop Ceiling Clip-On Mount - Foam Lined for Added Strength - Black Rubber Rim - Light Weight

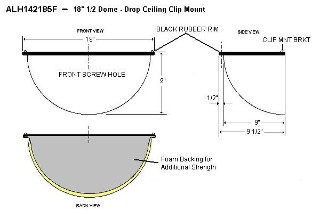

The picture on the right is showing the drop-ceiling mounting clips. Back of foam lined mirror Half dome specification sheet The picture to your left is illustration of the Drop-Ceiling Mounted half dome.
---- Acrylic 180 degree view dome Drop-Ceiling Mounted Mirror ----
The drop-ceiling mounted, half domes, are made to attach to the metal rail that boarders a typical drop ceiling installation. They are easy to install - the lens is shatterproof acrylic with excellent reflective properties - there is a foam lining to hold the mirror rigid and add strength. The black rubber rim gives the mirror a clean professional look. This mirror is a good choice where there are drop-ceiling tiles and you do not want to but any holes into the wall. There are also holes in the flange, which can be used to fasten the mirror to a wall with screws. ( MADE IN THE USA)

Item Code Size Price Each
  • 1
  • 5
  • 10
  • 15
 Add to Cart
AL-H142185F 18
  • $45.00
  • $43.00
  • $40.50
  • $38.00
AL-H142245F 24
  • $55.00
  • $52.00
  • $49.50
  • $47.00
AL-H142265F 26
  • $62.00
  • $59.00
  • $55.80
  • $53.00
AL-H142305F 30
  • $66.00
  • $63.00
  • $59.40
  • $56.00
AL-H142365F 36
  • $79.00
  • $75.00
  • $71.10
  • $67.00
4) Inside Use Only - Wall Mounted "D" Loop Brackets - Hardboard Back (one-side only) - Black Rubber Rim

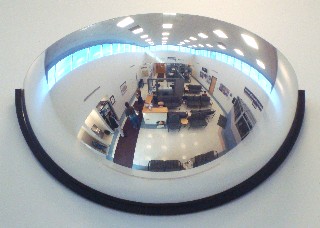

The picture on the right is a front view of the 18" half dome Hardboard Backed mirror. This mirror is fastened to a wall using the two "D" Loop hooks on the back panel. Front of installed corner dome Half dome mounting instructions The picture to your left illustrates how domes are mounted.
---- "D" Loop mounting brackets - Acrylic 180 degree view dome ----
The Hardboard backed half dome mirrors are more rigid than the flange mounted mirrors and have the Extruded Black rubber rim for a more finished look and added strength. The lens is shatterproof acrylic with excellent reflective properties. This mirror is a good choice where the mirror can easily mounted securely onto a wall but not directly against the ceiling. The Black rim provides a finished professional look. ( MADE IN THE USA)

Item Code Size Price Each
  • 1
  • 5
  • 10
  • 15
 Add to Cart
RP-AV12H 12
  • $40.00
  • $38.00
  • $36.00
  • $34.00
RP-AV18H 18
  • $62.00
  • $59.00
  • $55.80
  • $53.00
RP-AV26H 26
  • $101.00
  • $96.00
  • $90.90
  • $86.00
RP-AV32H 32
  • $136.00
  • $129.00
  • $122.40
  • $116.00
RP-AV36H 36
  • $168.00
  • $160.00
  • $151.20
  • $143.00
5) Inside/Outside Use - Galvanized STEEL BACK (one side only) - Black Rubber Rim - "D" Loop mounting brackets
The picture on the right is a Front view of an 18"x9" steel backed half dome mirror. Front view of a steel backed mirror Half dome mounting instructions The picture to your left illustrates where the mounting holes are located.
---- STEEL BACK - "D" Loop mounting brackets - Acrylic 180 degree view dome----
STEEL backed half dome mirrors are more rigid than the flange mounted mirrors and have the Extruded Black rubber rim for a more finished look and added strength. The lens is shatterproof and UV proof acrylic with excellent reflective properties. The steel back can get wet and not damage the back. If there is water, however, it is highly recommended that the mirror is mounted with the open portion of back mounted toward the wall and the steel portion used as a top. This will prevent water from filling up the mirror like a bowel holding water. Other than the backing material, the mirror is the same as the above, hardboard backed mirror.( MADE IN THE USA)

Item Code Size Price Each
  • 1
  • 5
  • 10
  • 15
 Add to Cart
RP-AV18HS 18
  • $68.00
  • $65.00
  • $61.20
  • $58.00
RP-AV26HS 26
  • $105.00
  • $100.00
  • $94.50
  • $89.00
RP-AV32HS 32
  • $149.00
  • $142.00
  • $134.10
  • $127.00
RP-AV36HS 36
  • $184.00
  • $175.00
  • $165.60
  • $156.00
6) ALL STEEL HALF DOME MIRRORS - Polished and Chrome Plated - Flange Mounting Holes

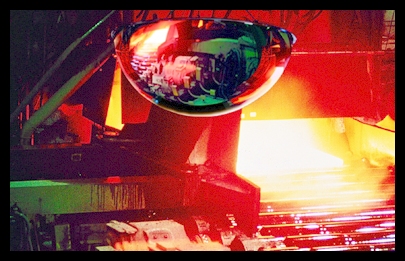

The picture on the right is of the polished steel Dome mirror. NOTE: Picture is of the Full Dome Version. This mirror is fastened to a wall or ceiling through the holes in the flange. Steel mirror in smolting plant

PRINTABLE PRODUCT CUT SHEET for the steel domes
---- POLISHED CHROME PLATED STEEL 180 Degree Half Dome - Flange Mounted Mirror ----
The Polished steel domes were made for high temperature environments. They are mounted with screws through the holes in the flange. There is no rubber rim or any part of the mirror that will be damaged from moderate heat or caustic conditions. Being all steel, they cannot be broken. (Distributed IN THE USA)

Item Code Size Price Each
  • 1
  • 5
  • 10
  • 15
 Add to Cart
SA-PVS9-180 9
  • $90.00
  • $85.98
  • $81.45
  • $72.40
SA-PVS12-180 12
  • $109.50
  • $104.03
  • $98.55
  • $87.60
SA-PVS18-180 18
  • $134.25
  • $127.54
  • $120.83
  • $107.40
