90°
Quarter Dome Safety Mirrors
|
CORNER DOME LENS:
Quarter dome mirrors are made to fit into a corner between two intersecting
pathways. They have a 1/4" to 3/4"
flange around the edge depending on the size of dome. There are
slight variations in the round (convex) shape but generally they are
the same. If you need exact specifications please contact sales and support.
Corner Dome Backing
- 1) Lens Only
- No Backing - Less rigidity. For inside use only.
- 2) Foam Lined
- No Backing - Lens is coated in foam for rigidity. For inside use only.
- 3) Hard-Board
- Masonite Board - For inside or covered & protected outside use.
- 4) Galvanized Steel
- Non-porous surface for high interior humidity applications.
- 5) Abs Plastic
- Black plastic back. More rigidity than lens only. Non-Porous surface.
Corner Dome Mounts
- 1) Flange Mount
- Screwed into ceiling through holes in the flange.
- 2) Drop Ceiling Clip Mount
- Clips onto drop ceiling tile dividers.
- 3) Spring Mount
- Springs hold mirror onto two hooks screwed into mounting surface.
- 4) Chain/Wire Mount
- Comes with Loops on edge of mirror that can screwed to a wall or used to attach chain or wire to suspend mirror.
.
|
| 1)
Inside Use Only -
Light Weight - NO Black Rubber Rim - Flange Mount Holes
|
 |

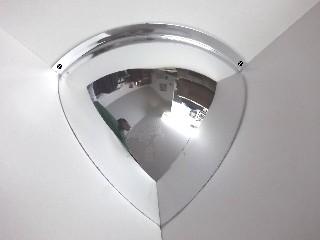

<-------Front View
of the "No Back" Quarter dome mirror.

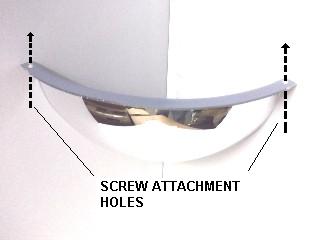

TOP VIEW of the Lens Only
Quarter Dome ------------> |
 |
|
|
(Click
on the drop-down button next to the price to see all Sizes and Prices.)
|
|
ACRYLIC Quarter
Dome Mirror -
No
Backing
- Flange Mount -
12" to 48" Sizes |
|
|
|
|
| 2)
Inside Use Only -
Light Weight - Foam Lined for Added Strength - Black Rubber Rim - Drop Ceiling Clip-On Mount
|
|
View
of the Drop Ceiling Clip Mount. The Mirror is mounted by
pressing the clip mount (seen in the picture) onto the steel boarder
edge rail running along the wall in a typical Drop-Ceiling
installation. There is a screw hole in the front (center) of the
flange where a screw can be used to secure the mirror to the
drop ceiling tile thus avoiding a gap between the ceiling tile
and the top front of the mirror. Using a screw in that location
also provides extra security in preventing the clips from
pulling away from the wall if bumped. |
|
|
|
|
(Click
on the drop-down button next to the price to see all Sizes and Prices.)
|
|
ACRYLIC Quarter
Dome Mirror -
Foam Lined
- Drop Ceiling Clip Mount -
18" to 36" Sizes |
|
|
|
|
| 3)
Inside Use Only -
Light Weight - Foam Lined for Added Strength - White Rubber Rim - Spring Mounted
|
|

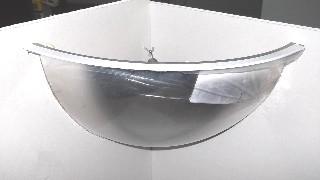

<-----Front View
of the Foam Lined Spring Mount Quarter Dome Mirror.
Picture of the Spring Mount.
--------------> |
 |
|
|
|
(Click
on the drop-down button next to the price to see all Sizes and Prices.)
|
|
ACRYLIC Quarter
Dome Mirror -
Foam Lined
- Spring Mount -
9" to 36" Sizes |
|
|
|
|
| 4)
Inside Use Only -
SCRATCH RESISTANT COATING
- Light Weight - Foam Lined for Added Strength - White Rubber Rim - Spring Mount
|
|
|
The "SCRATCH
RESISTANT" Coated Dome mirrors look the same as the above Spring
Mounted Domes. See Pictures above. |
|
|
|
|
(Click
on the drop-down button next to the price to see all Sizes and Prices.)
|
|
Scratch Resistant ACRYLIC Quarter
Dome Mirror -
Foam Lined
- Spring Mount -
18" to 36" Sizes |
|
|
|
|
| 5)
Inside Use Only -
Hardboard Backing for Rigidity - Black Rubber Rim - Wall Hanging Brackets
|
|

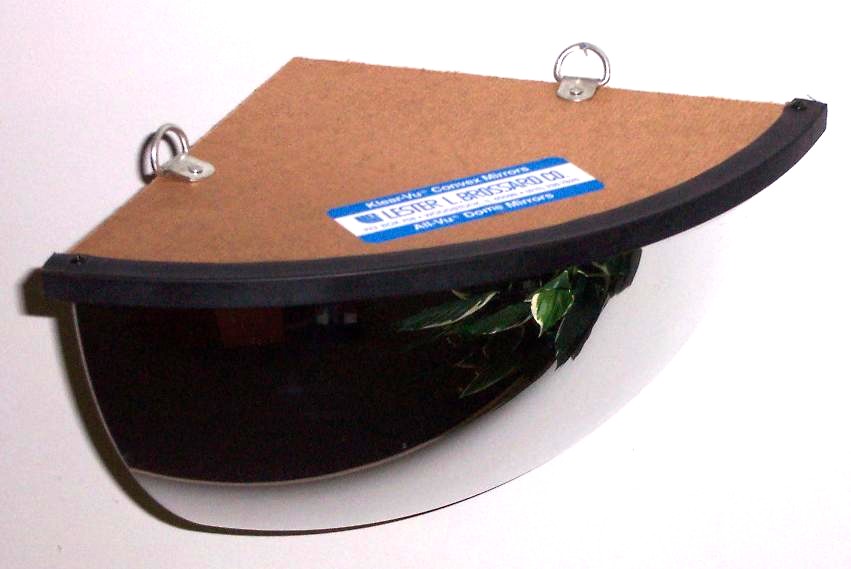

Top-side View
of the "Hardboard Back" Corner Dome Mirror. |
|
|
|
|
(Click
on the drop-down button next to the price to see all Sizes and Prices.)
|
|
ACRYLIC Quarter
Dome Mirror -
Hardboard
Backing
- Wall Hanging Mounting Brackets -
12" to 36" Sizes |
|
|
|
|
| 6)
Inside/Outside Use -
Galvanized Steel Back for Strength - Non-porous Backing - Black Rubber Rim - Wall Hanging Brackets
|
|
The Galvanized
Steel Back Corner Dome Mirror looks the same as the above
pictured Hardboard Backed mirror only with a STEEL BACK
replacing the above brown hardboard back.
|
|
|
|
|
(Click
on the drop-down button next to the price to see all Sizes and Prices.)
|
|
ACRYLIC Corner
Dome Mirror -
Non-porous Galvanized Steel Backing
- Chain/Wire Hanging Brackets -
18" to 36" Sizes |
|
|
|
|
|
|
